Electronic & SCM Series Training Board

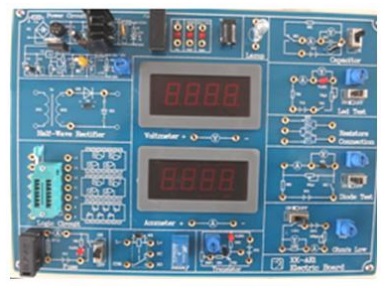

Analog & Digital Electronic Training Board

It integrates the technology of analog and digital electronics; It has compact structure and include one voltmeter and ammeter; It introduces the common circuit and components application of electronics technology.

scmtb1


Logic Principle Panel

It is used for digital electronics technology teaching, it will finish normal digital circuit experiment and realize the combination of various digital circuits, simple and convenient for learning. It includes one whole 8-way responder circuit, learning analysis and design of digital system

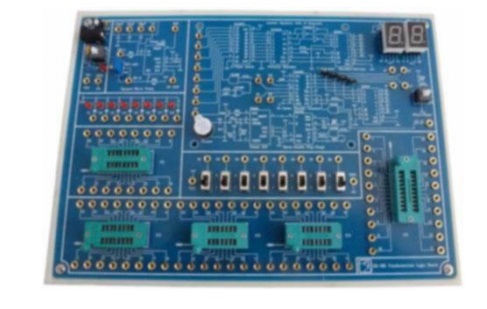

scmtb2


Digital Training Board

It is mainly used for teaching of digital electronic technology, it will finish various experiments and course design of digital circuit course, suitable for the electronic technology course.
Training board mainly includes input output circuit、IC locking socket、555 circuit、DA convertor circuit and RAM read/write circuit, it also extending the AD convertor circuit、ROM circuit、programmable logic device and various integration chip principle circuit. We can customize extending board as user requirement.

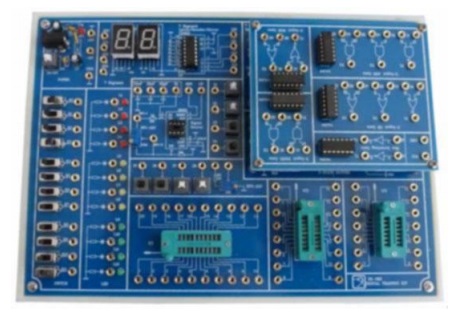

scmtb3


Digital Training Panel

It is mainly used for teaching of digital electronic technology, it will finish various experiments and course design of digital circuit course, suitable for the electronic technology course.
Training board mainly includes input output circuit、IC locking socket、555 circuit、DA convertor circuit and RAM read/write circuit

scmtb4

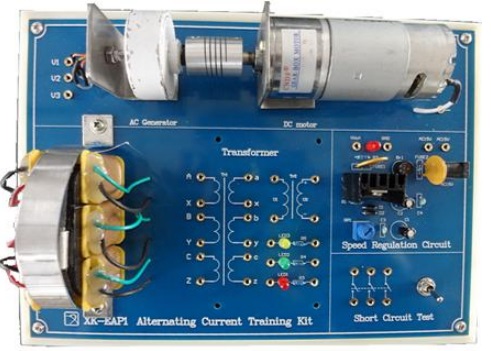

AC Current Training Kit

It is used for learning application of AC current. It mainly consists of adjustable DC voltage source、three phase transformer、motor and generator module

scmtb5

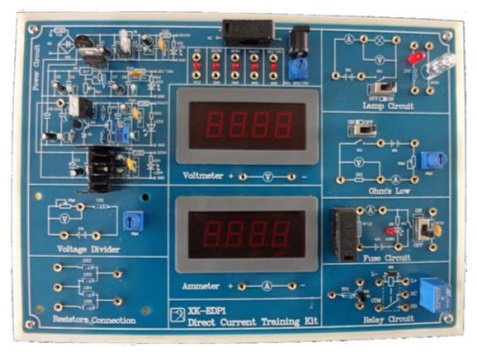

DC Current Training Board

It is mainly used for learning the DC current application. It consists of stabilized voltage supply module、voltmeter ammeter、fuse、diode transistor and Ohm law test module.

scmtb6

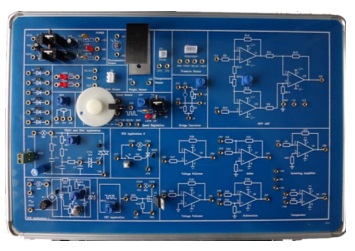

Analog Electronic Training Panel

It mainly used for teaching of analog electronic, experiment circuit adopts fixing function module mode, circuit principle and component symbol is clear. It consists of diode rectification module, double-way trigger diode trigger two-way SCR module, unijunction transistor dimming experiment module, kinds of sensors and amplification circuits etc.

scmtb7


Microcontroller Experiment Board

It uses the 51 SCM, user study the design of SCM system and application of various interface application

scmtb8

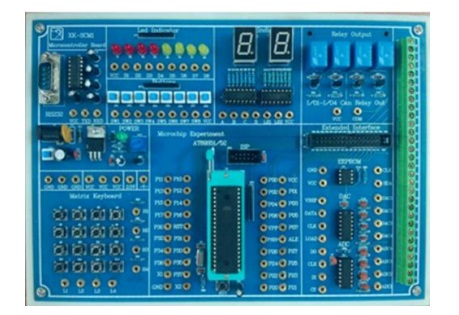

Microcontroller Experiment Board

It uses the AVR SCM, user study the design of SCM system and application of various interface application

scmtb9


Microcontroller Experiment Board

It uses the PIC SCM, user study the design of SCM system and application of various interface application

scmtb10

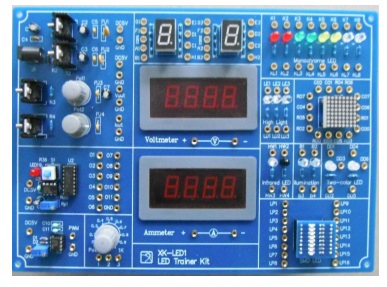

Light Emitting Diode Experiment Board

It is used for application of various LED, it consists of adjustable voltage source, adjustable current source, adjustable PWM output circuit, digital voltmeter, digital ammeter and kinds of LED lamps.
