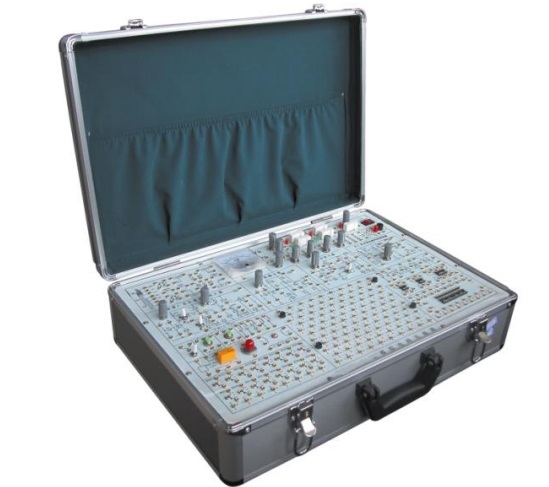

Electronic & SCM Series Experiment Suitcase

Analog Electronic Technology Training Kit

The integrated the power supply、signal source、common load and common typical amplifying circuit experiment unit, it will finish the almost experiments of analog electronic course. It’s box structure, easy to carry

scmes1

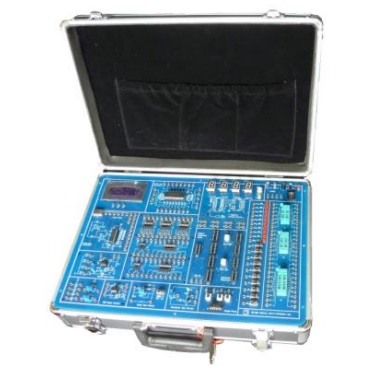

Digital Electronic Technology Training Aid

It mainly consists of locking seat of common pins、IC seat、logic switch、LED、555 timing circuit、 single pulse output、 AD/DA switching circuit、 Built-in frequency meter、voltmeter、stopwatch、signal generator. It will finish digital-electronic basic experiment、 design experiment and integration experiment

scmes2


Transistor Application Experiment Kit

It mainly consists of mother board and small expansion board, expansion board installs the normal electronic components, the expansion board is inserted into mother boar d to completes the experiment, the mother board integrates the principle diagram of audion application and terminals, storage area for small expansion board storage.

scmes3


Electronic Sequencer Experimental Box

It mainly consists of 4- way AND gate circuit、4- way OR gate circuit、4- way NOT gate circuit、10 of control buttons 、8 of indication lights、8- way electronic sequencer circuit 、8- way relay output、2- way integrated electronic time delayer (5s~1min) etc. It is suitable for students training circuit of AND gate、OR gate、NOT gate、sequence control

scmes4

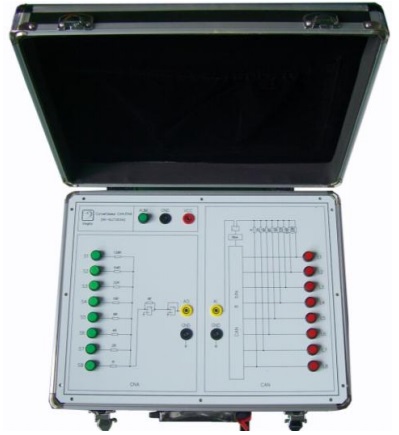

AD and DA Conversion Experiment Kit

AD and DA conversion experiment kit, on the kit board integrated A/D conversion and D/A conversion experiment module. Students learning principle and normal circuit of A/D and D/A conversion

scmes5


Modulation-Demodulation Experimental Box

The experimental kit integrated MC1496 modulation experiment circuit and MC1496 demodulation experimental circuit. Students learning modulation and demodulation principle and phenomenon through oscilloscope

scmes6


Digital Logic Experimental Portable Suitcase

The digital logic experimental portable suitcase consists of normal logic gate circuit、RS trigger、here adopts type of principle symbol and jack, it will be convenient for students learning and using the normal logic gate and trigger etc.

scmes7


Digital Logic Circuit Experimental Case

The digital logic circuit experimental case consists of normal logic gate circuit、 trigger and signal generator, here adopts type of principle symbol and jack, it will b e convenient for students learning the symbol of logic gate and trigger and using them

scmes8


Basic Power Supply Experiment Case

The basic power supply experiment case integrated the modules of rectification 、filtering 、voltage stabilization that related with power supply experiments. Students learning the rectification 、filtering 、voltage stabilization of three terminal regulator 、voltage stabilization of rectifier diode experiments of AC power supply.

scmes9

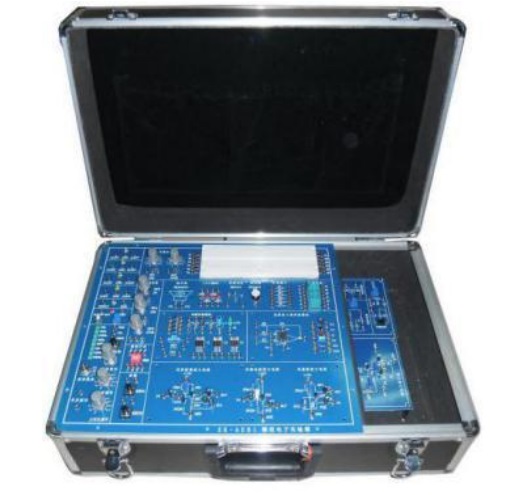

Modularization Analog Electronic Training Set

It consists of mother board and expansion board, expansion board is convenient to plug-in mother board to do experiments, mother board can plug-in four expansion boards to operate experiments at same time. The Experiment box’s mother board integrated power supply, signal source, normal load, breadboard, potentiometer etc. Also integrated several experiment expansion boards: power source experiment expansion board、operational amplifier experiment expansion board、common emitter amplifier circuit experiment board、the common collector amplifier circuit experiment extension board、common-base amplification circuit expansion experiment board.

scmes10

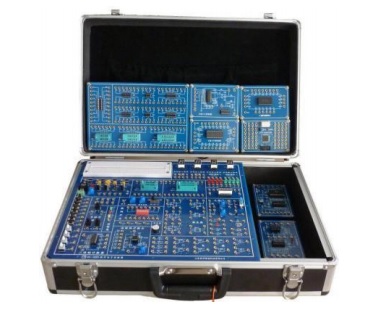

Modularization Digital Electronic Training Set

It adopts modularization expansion boards and mother board;It includes logic level input output、 Nixie tube display circuit、 basic logic gate、 RS、 JK、 D trigger circuit、discrete component library、 bread board、 toggle switch、 binary counter circuit, it will finish experiments required by digital electronics course. Students can be quickly master the knowledge of digital electronics system design through experiments, also supply EDA design and learning for students.

scmes11

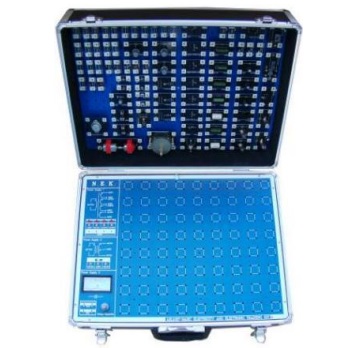

Basic Power Electronics Technology Experiment Set

It is composed of motherboard and small experiment modules, the motherboard with a variety of AC power and an adjustable voltage source, and also with analog voltmeter that is connected with output terminals of adjustable DC power supply voltage .
Variety of experimental small modules, includes analog circuits, basic gate circuit, some power components, etc., It can completely finish a variety of experimental projects. During experiment, insert the small modules to motherboard’s experimental area, and using banana head wires connection and do experiments.

scmes12

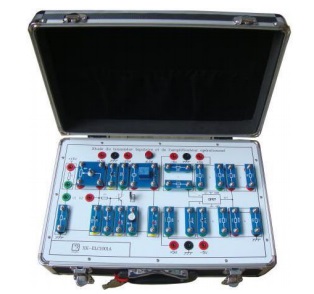

Transistor and Operational Amplifier Experiment Portable Suitcase

It consists of mother board and expansion boards, the expansion board is installed with electronics components, it install on mother board t o finish the experiment, the mother board integrated power source 、 power indication light、transistor amplifying circuit unit 、Operational amplifier unit etc.

scmes13


Logic Circuit(TTL,CMOS)Experimental Kit

It includes TTL and COMS common logic gate circuit 、key input and LED logic level display, it adopts the type of principle symbol and jacks, it will be convenient for s tudents to learning and using logic gate symbol and logic gate circuit.

scmes14

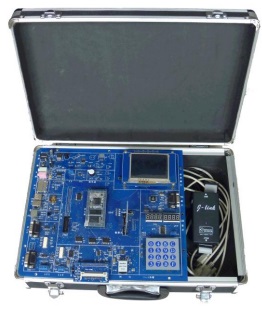

Embedded Type Experiment Box

This experiment box adopts the S3C2440 chip of Samsung Company. S3C2440 is launched by Samsung Company, it’ s with powerful function and lowest power consumption and it’ s one kind of ARM9 embedded t ype CPU. Now it’ s widely used in GPS application、Data Servers、VOIP、network terminals、industrial control 、equipment detection 、 instruments and meters 、 intelligent terminal 、 medical equipment 、 security monitoring etc. embedded type high-tech application products.

scmes15

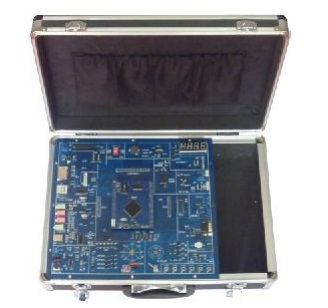

Embedded DSP Experiment Box

This experiment box is developed and designed by TI company DSP chip TMS320F2812, adopts bottom board and core board mode, the highest main frequency will be up to 150MHz, signal line and control l ine are all lead out with standard space of 2.54mm, easy for extending. Core board extending RAM and Flash, it will be compile the more bigger program, change the core board then ill
change the processor. The bottom board lead out the common normal interf ace circuit, on the experiment box install the stepper motor and DC motor, easy for learning.

scmes16


EDA Experimental Kit

This experiment kit is one kind of EDA teaching and developed device with multifunction、high configuration、high quality. It can meet the experiment course requirement of modern electronic technology EDA teaching and digit circuit for high school and vocational school

scmes17.

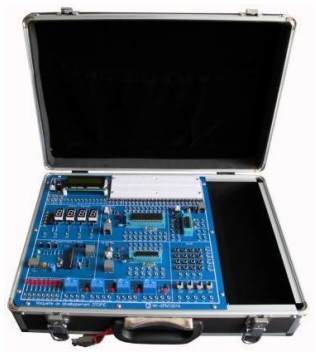

PIC Single Chip Microcontroller Experimental Set

This trainer is mainly suitable for learning of PIC SCM.It is equipped with three kinds of PIC16F877A 、 PIC16F876A 、PIC16F628A chip minimum system 、normal input output e xperiment unit、kit self equipped programmer module, convenient for chip burning program. SCM minimum system burning interface supports connect simulator to do simulation.

scmes18


SCM and Interface Technology Experiment Suitcase

This experiment suitcase offers experiment of traditional 51 SCM principle 、general input output interface experiment, it also
refers current SCM latest and widely application interface experiment, for example, I2C chip、IC card 、ISD voice etc.

scmes19

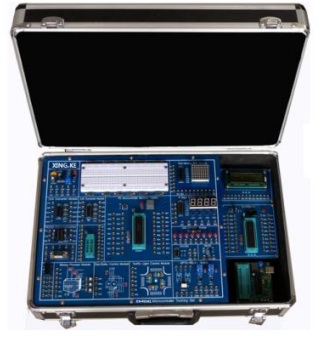

SCM Experiment Box (AVR+PIC+MCS51)

The trainer consists of mother board and expansion board
The mother board of kit integrated power source module 、PIC SCM min system module、 normal function unit、 virtual load unit、 bread board extending experiment area. Extending board includes AVR/MCS51 SCM min system, partial function experiment module, configuration required by user, the kit and extending board can be connected by 9 chip serial port line.

scmes20


Modularization SCM Experiment Kit(AVR+PIC+MCS51)

The trainer consists of mother board and expansion board, expansion board convenient for the extending experiment. The mother board of kit integrated power source module 、MCS51 min system module、 normal function unit, for example Nixie tube 、 LCD、 Lattice screen、 stepper motor、independent button 、storage chip etc. Extending board includes AVR/PIC SCM min system, common function experiment unit, it can be configuration as user diffe rent requirement.

scmes21

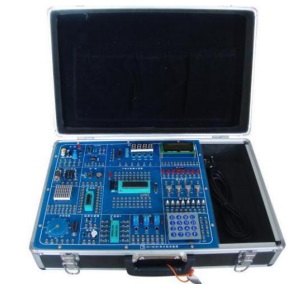

51 SCM Experimental Suitcase

This experiment box integrated power source unit 、AT89S51/52 SCM min system and common function experiment unit, for example Nixie tube 、LCD、Lattice screen、 stepper motor、 independent button 、 matrix keyboard、 storage chip etc. Modularized design and classical circuit are suitable for user learning 51 SCM

scmes22

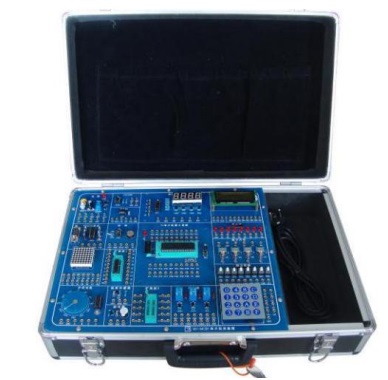

PIC SCM Experimental Box

This experiment box integrated power source unit 、PIC16F877A SCM min system and common function experiment unit, for example Nixie tube 、LCD、Lattice screen、 stepper motor、 independent button 、 matrix keyboard、 storage chip etc. Modularized design and classical circuit a re suitable for user learning PIC SCM

scmes23


AVR SCM Experimental Box

This experiment box integrated power source unit 、ATMEGA16A SCM min system and common function experiment unit, for example Nixie tube 、LCD、Lattice screen、 stepper motor、 independent button 、 matrix keyboard、 storage chip etc. Modularized design and classical circuit are suitable for user learning AVR SCM
